SPECIFICATION

TYPE		RR2P	RR3P
DIMESIONS(mm)		28.9 x36x55	36 x36x55
CONTACT FORM		2Z	3Z
CONTACT CAPACITY		10A/220VAC 28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥500mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 110V
	AC	6 to 380V
COIL POWER	DC	≤0.9W
	AC	≤1.2VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +55℃
WEIGHT		≤74g	≤80g
FITTED SOCKET		90.22	90.23
MOUNTING FORM		Outlet

DIMENSION

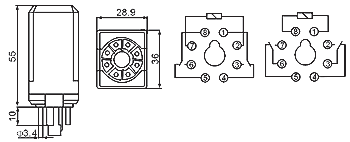

RR2P

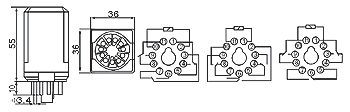

RR3P
