SPECIFICATION

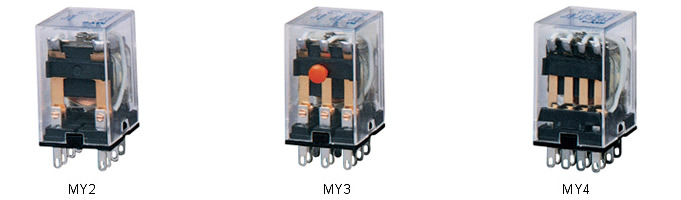

TYPE		MY2	MY3	MY4
DIMESIONS(mm)		20.5X27X33.4	20.5X27X33.4	31X27.2X35.4
CONTACT FORM		2Z	3Z	4Z
CONTACT CAPACITY		5A 220VAC 5A 28VDC	5A 220VAC 5A 28VDC	3A 220VAC 3A 28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 110V
	AC	6 to 220V
COIL POWER	DC	≤0.9W
	AC	≤1.2VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 10% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤32g
FITTED SOCKET		PYF08A PYF08A-E PY-08	PYF08A PYF08A-E PY-08	PT-11 PTF11A
MOUNTING FORM		P.C.B, Flange,Outlet
REMARKS		with lamp:-N, FLANGE:-, F with bottom:-S, PCB:-O

MOUNTING HOLES DIMENSION

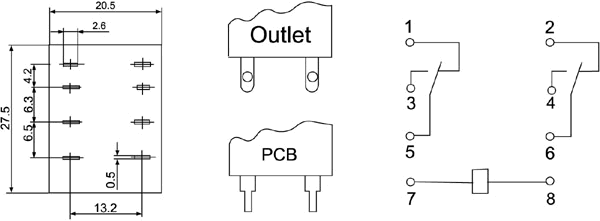

MY2

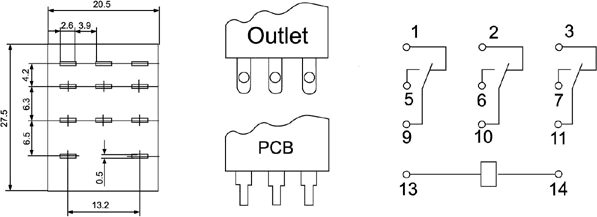

MY3

MY4
