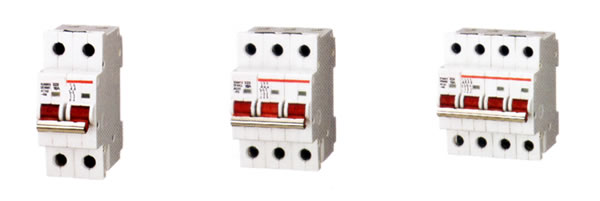

MINI CIRCUIT BREAKER LDAE(ABB.E230)
PRINT CLOSE
MINI CIRCUIT BREAKER
----------------
DZ47-63(C45N) C60N C65N DZ47-100(NC-100H) MY,MT L7 DX 5SX BKM BKN BH-D6 CYD AJM BMB BH6 DZ30,DZ60(DPN) SA,SF,SX,TQA,THQL BH E4CB K MEM HL32 BY1 LDAB1(ABB.S250S) LDAE(ABB.E230) LDAB9N(ABB.S951N)
DZ47-63(C45N) C60N C65N DZ47-100(NC-100H) MY,MT L7 DX 5SX BKM BKN BH-D6 CYD AJM BMB BH6 DZ30,DZ60(DPN) SA,SF,SX,TQA,THQL BH E4CB K MEM HL32 BY1 LDAB1(ABB.S250S) LDAE(ABB.E230) LDAB9N(ABB.S951N)
DZ47-63(C45N) C60N C65N DZ47-100(NC-100H) MY,MT L7 DX 5SX BKM BKN BH-D6 CYD AJM BMB BH6 DZ30,DZ60(DPN) SA,SF,SX,TQA,THQL BH E4CB K MEM HL32 BY1 LDAB1(ABB.S250S) LDAE(ABB.E230) LDAB9N(ABB.S951N)
APPLICATION
LDAE(E230)MINI CIRCUIT BREAKER is used for AC 50Hz/60Hz, Rated voltage 220V or 380V distribution and control circuit as the terminal switch. It can also be used to control all kinds of motors, small power electric and lighting. It has small volume, modularized assembly and beautiful appearance. This product comply with IEC947-3S.
SPECIFICATION
Pole(P)
Rated current(A)
Rated voltage(V)
Mechanical Life
Electrical Life
Rated On-off capacity
1,2
16,32,45
220/380
20000
6000
1.1mm,3Ln

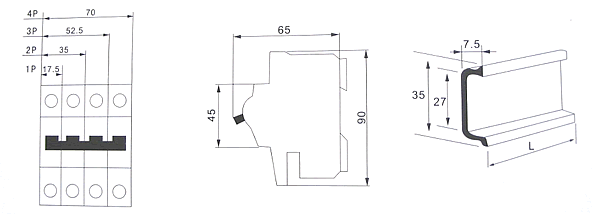

DIMENSION
