APPLICATION

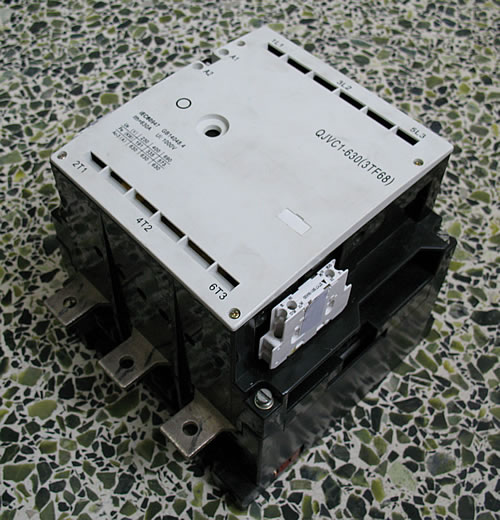

QJCV1-630A AC VACUUM CONTACTOR is mainly used for the elctrical circuit of AC 50Hz or 60Hz, Rated AC voltage not over 1000V, Rated working voltage 380V in AC-3 condition and rated operation current 630A. The contactor is used for electric circuit's connection and break off, also made electramagnetic starter with thermal overload relay in order to protect overload electrical circuit. The contactor use saving circuit of AC or DC to pick-up and low voltage DC latching, then save the power.

TECHNICAL DATA

MODEL	Thermal current	Rated operation current		Max power of controlled electric motor	Outline & Installation size
		380V	660V	380V	660V	Amax	Bmax	Cmax	A	B	φ
QJCV1-630	630	630	630	335	573	232	278	232	150	210	12

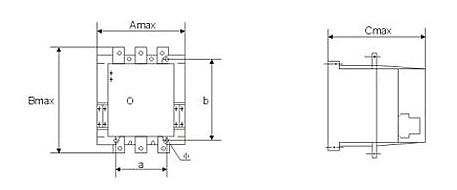

Outline & Installation size
