SPECIFICATION

TYPE		JQX-14FL
DIMESIONS(mm)		30x13.5x21
CONTACT FORM		1D,1H,1Z,2Z
CONTACT CAPACITY		1Z 10A/250VAC , 2Z 5A/28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	750VAC
	BETWIN COIL&CONTACT	1000VAC
COIL VOLTAGE	DC	5to 48V
	AC	----
COIL POWER	DC	≤0.53W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤15g
MOUNTING FORM		Printed-Circuit board

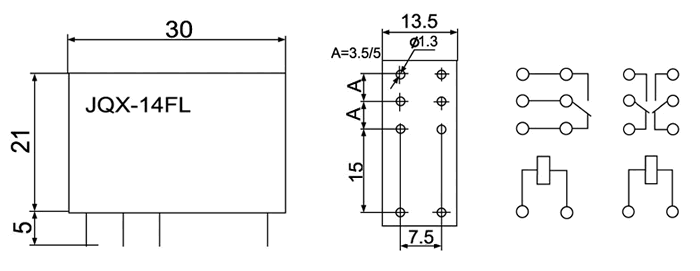

DIMENSION
