APPLICATION

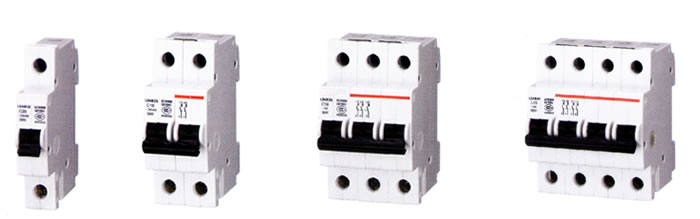

LDAB1(S250S) MINI CIRCUIT BREAKER is used in AC 50Hz/60Hz, rated voltage 400V and rated current to 63A. And they have high breaking capacity, small volume, modularized assembly and beautiful appearance. It's mainly used for the overload and short circuit protection of lighting and distribution equipment in office building, residence and other buildings. It can also be used for unfrequent switch on and off the electrical equipment and illumination circuit under normal condition. This product comply with IEC60898.

SPECIFICATION

Rated current(A)	Pole	Rated voltage	Mechanical life	Breaking capacity(A)	Instant tripping type	Instant protecting current scope
1,3,6 10,16,20 25,32,40	1,2 3,4	230/400	20000	6000	B	3In<I<=5In
					C	5In<I<=10In
					D	10In<I<=50In
50,63				4500	B	3In<I<=5In
					C	5In<I<=10In
					D	10In<I<=50In

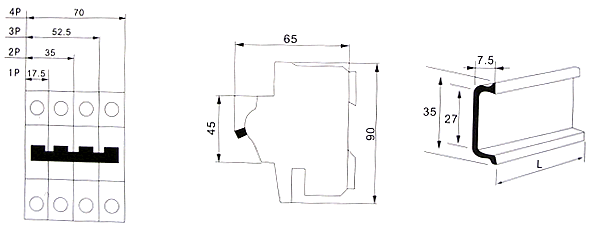

DIMENSION
